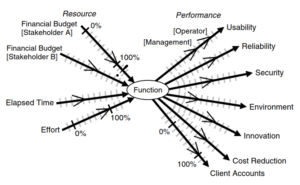

A representation of multiple performance and resource attributes showing goal and budget levels respectively. The ‘point’ of the icon goal and budget symbols indicates the level (reference needs to be made to the Scale to interpret the numeric value). One constraint, a Fail level, is shown on the resource attribute for Financial Budget [Stakeholder A]. The lines of the arrows represent the scales of measure (divisions along the scales are also marked).

From: Competitive Engineering 2005 – Tom Gilb
